REPL Australia, products and main areas of expertise are : Metal Expansion Bellows - Circular and Rectangular, Fabric Expansion Joints, Rubber Expansion Joints, Teflon Expansion Joints, Dampers and Silencers, Strainers, Tower Internals. All are manufactured using the highest quality materials and assembled with the most advanced techniques available. REPL Australia specialises in the design, manufacture, of metal and non- metal expansion joints, and other static types of equipment such as Dampers, Silencers, Stacks and Tower Internals, designed to meet the requirements of refineries, petrochemical, oil and gas, LNG, PTA, Polypropylene, and other Industrial Plants.

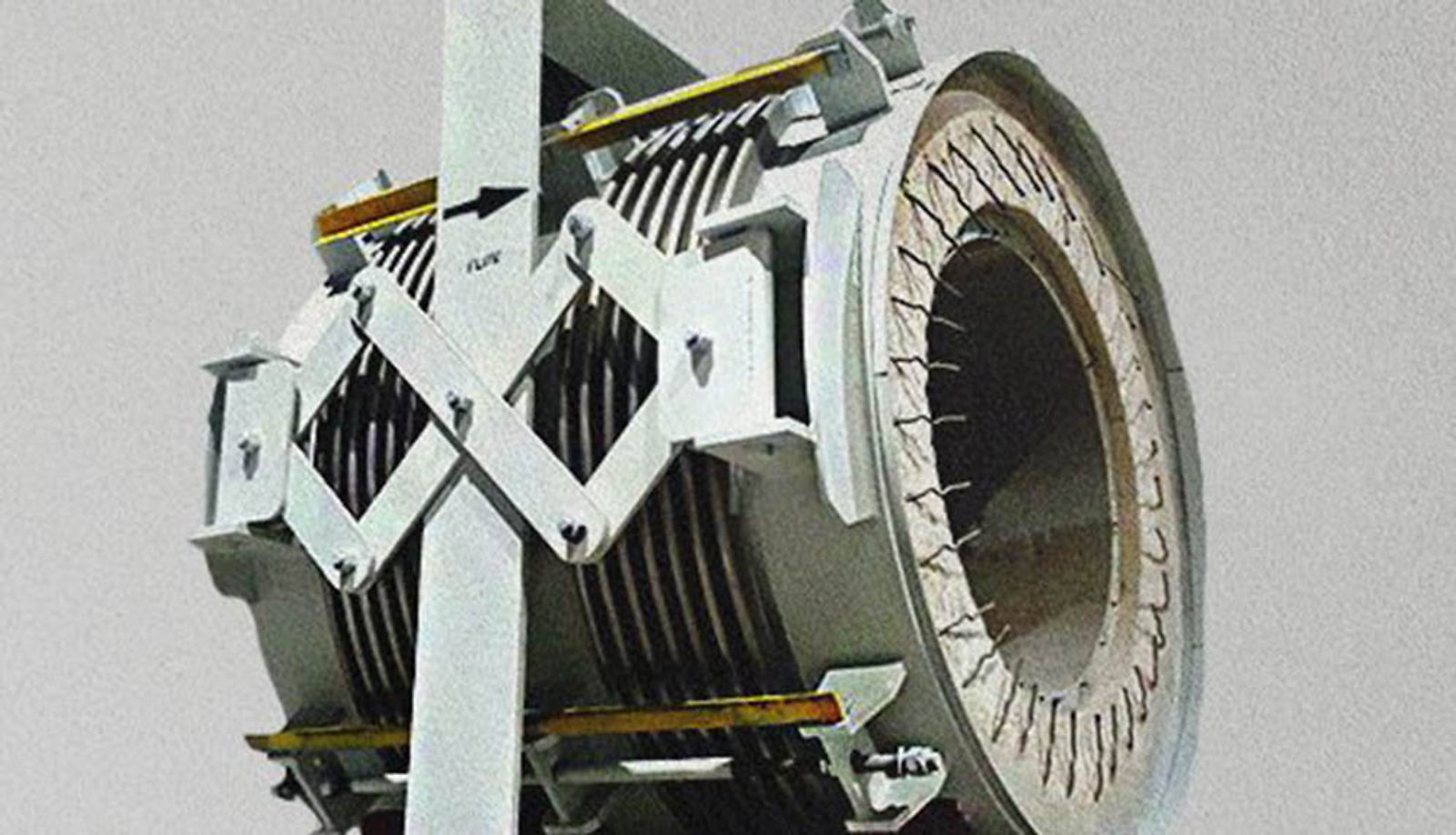

Metal Expansion Joints
Metal Expansion Joint
Reliable.
Load Reducer.
Control vibration
Designed for high pressure to absorb movements in all directions.
Designed for absorb pressure thrust force.
Non-Metal Expansion Joints
High flexibility for concurrent movements.
Minimum overall face-to-face length
Isolates vibration
Lower cost to ship, install, and replace Corrosion resistant
Insignificant spring forces

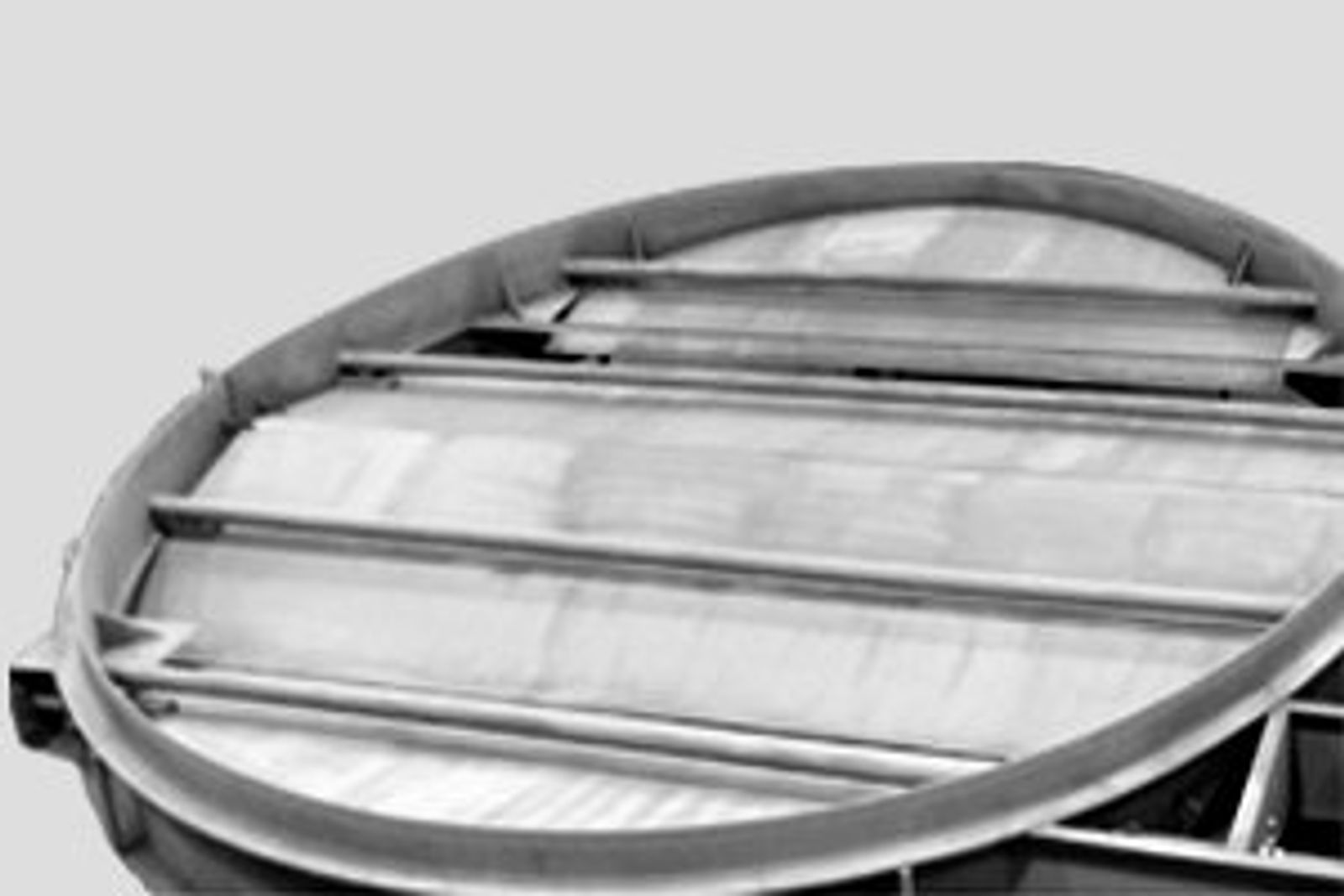

Dampers and Stack
Dampers & Stacks
High Strength
Cost-Effective

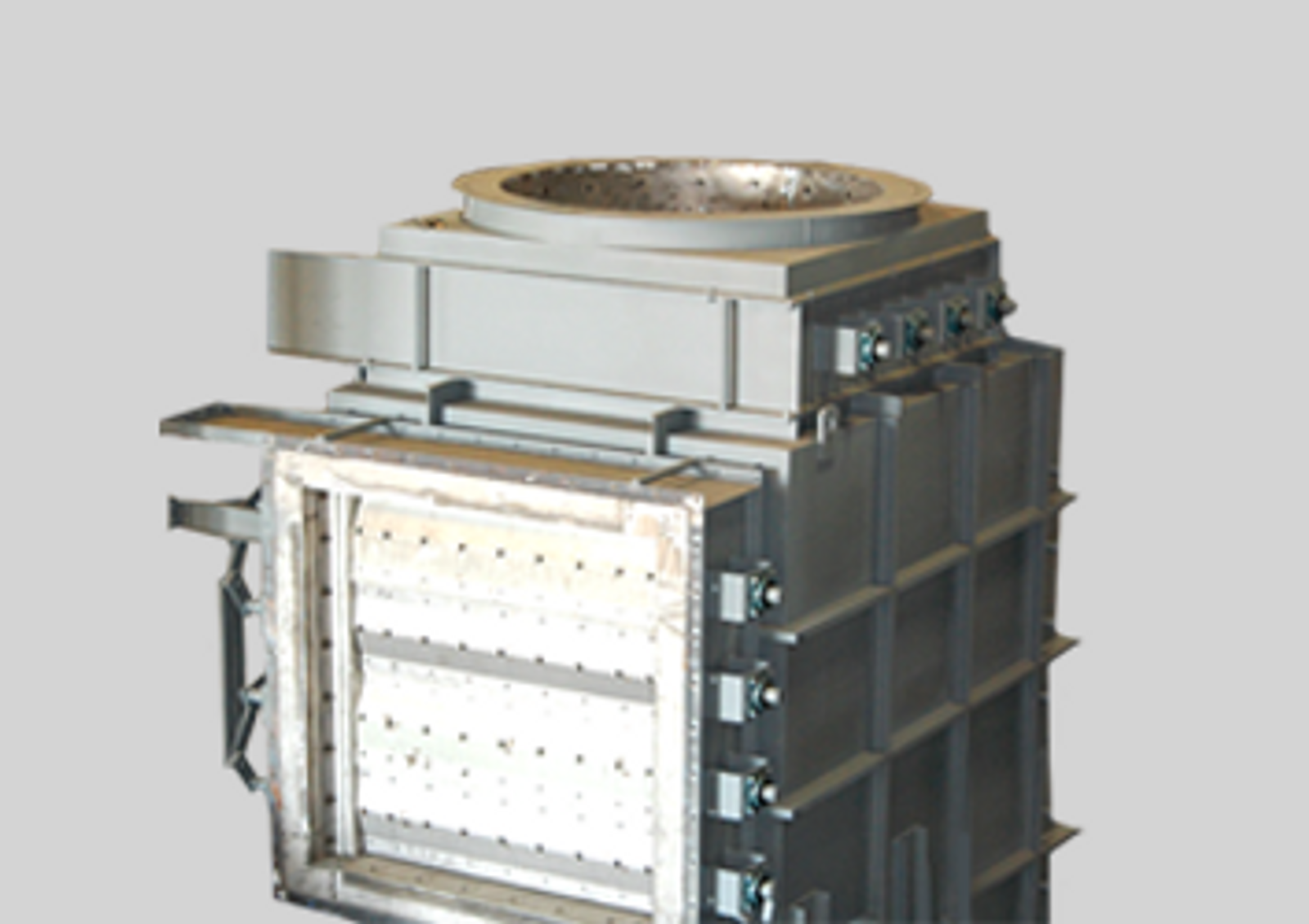

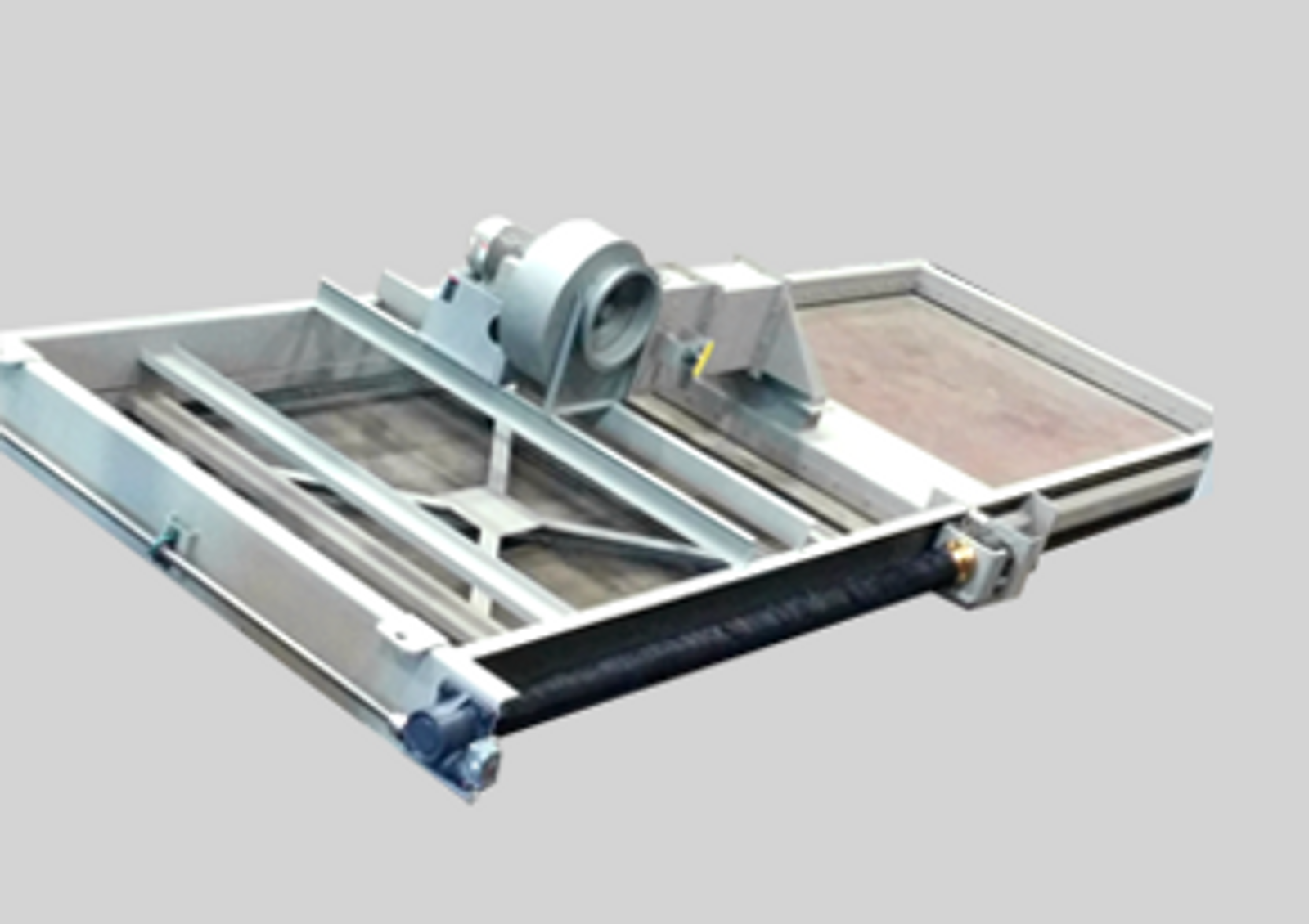

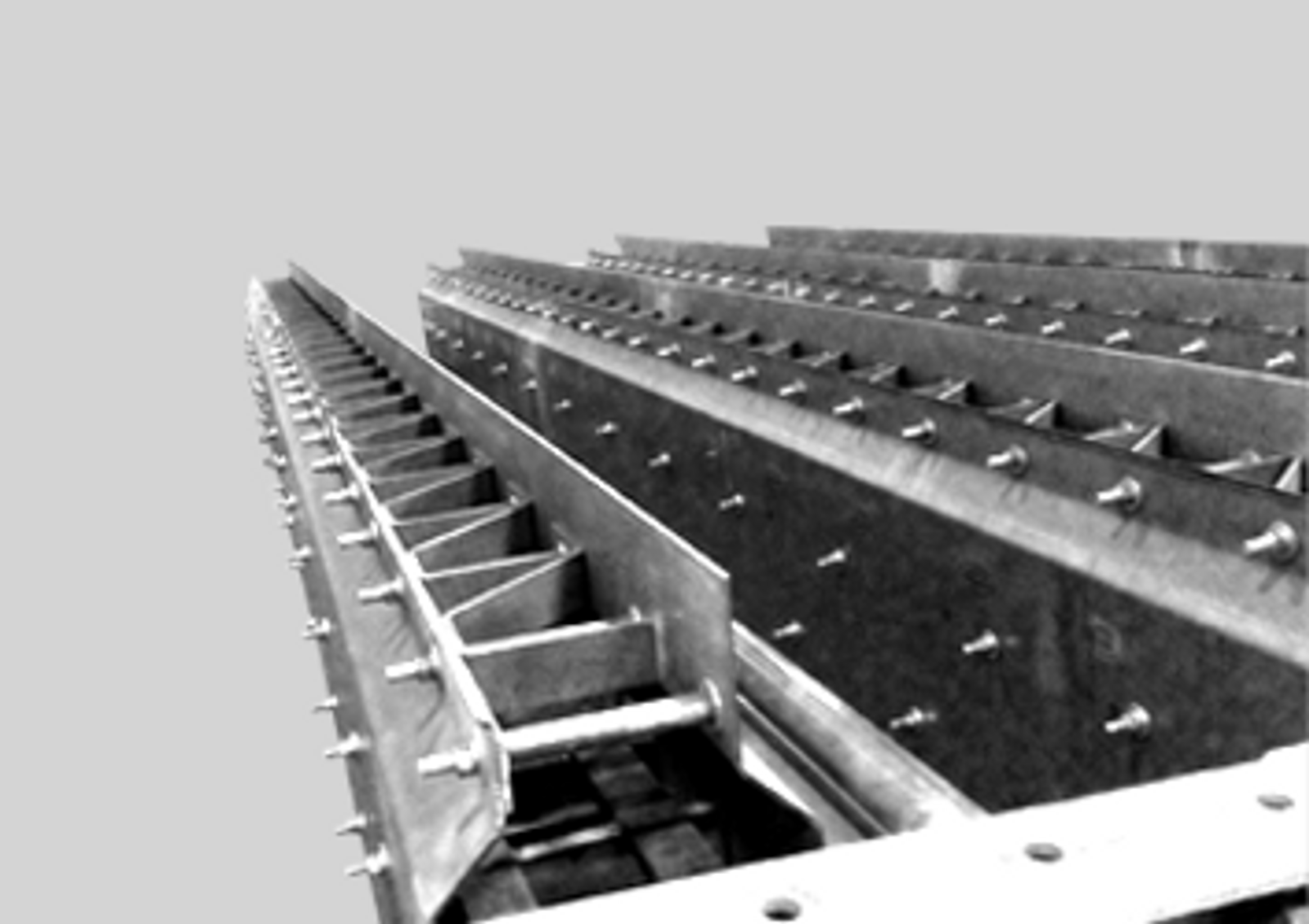

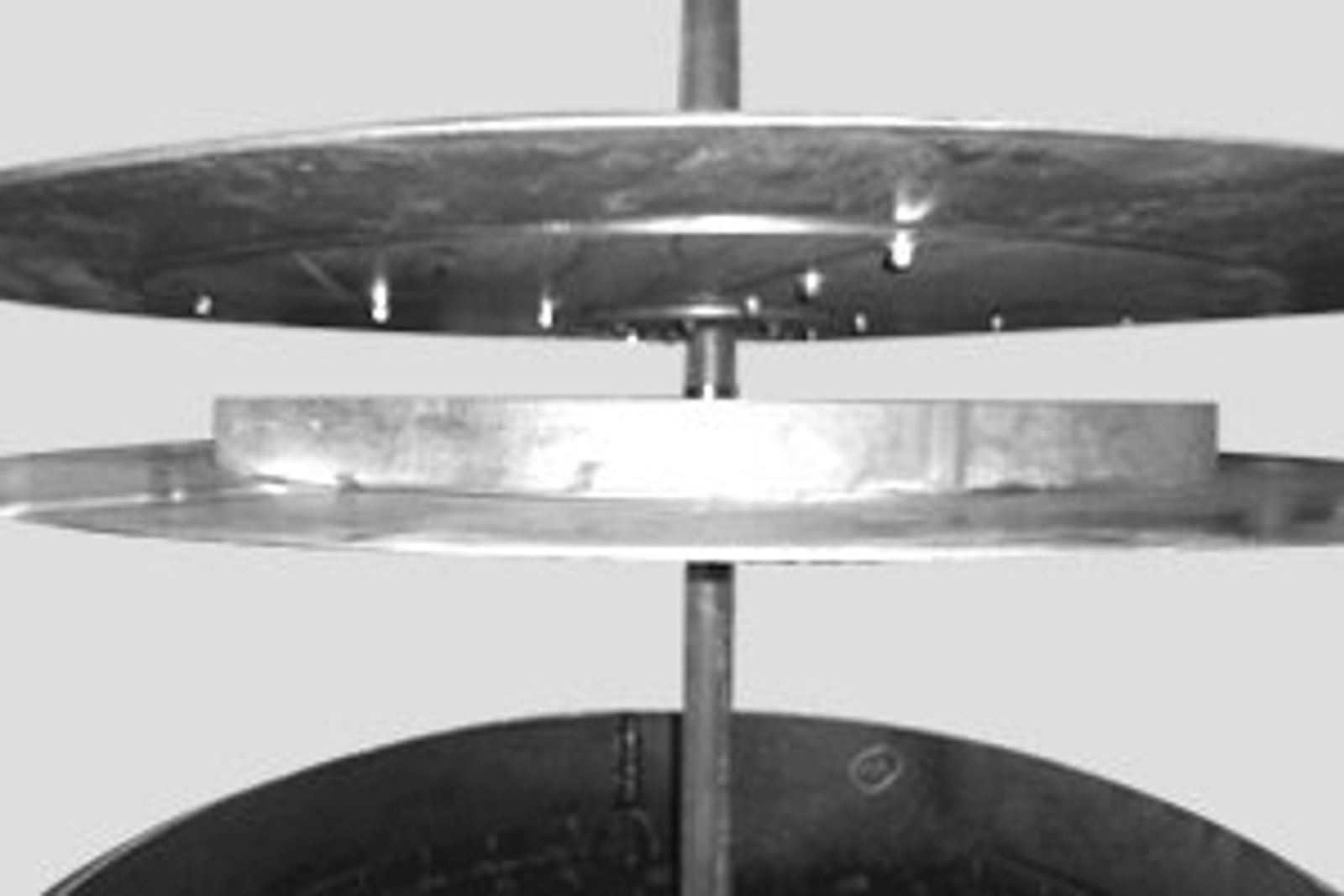

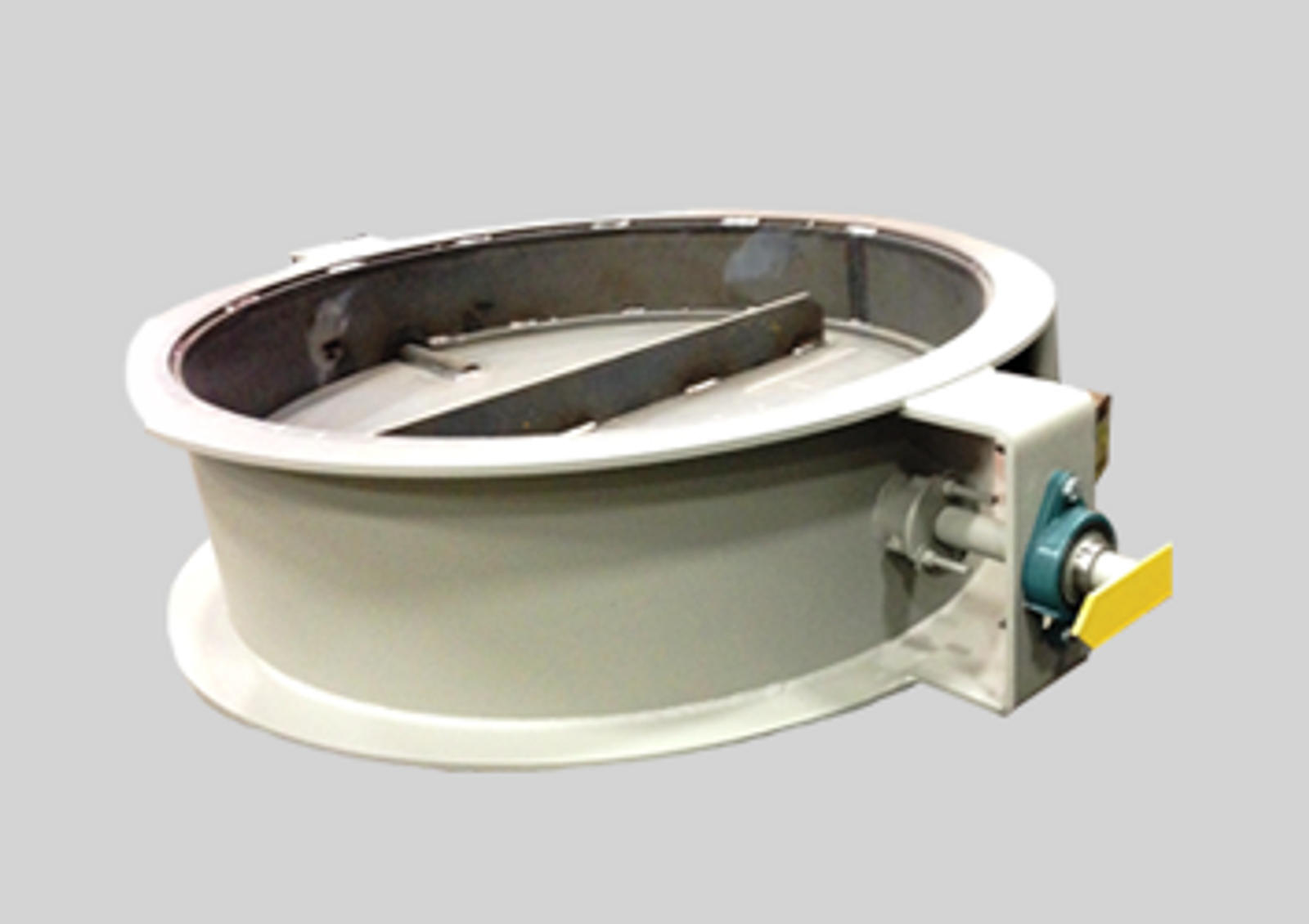

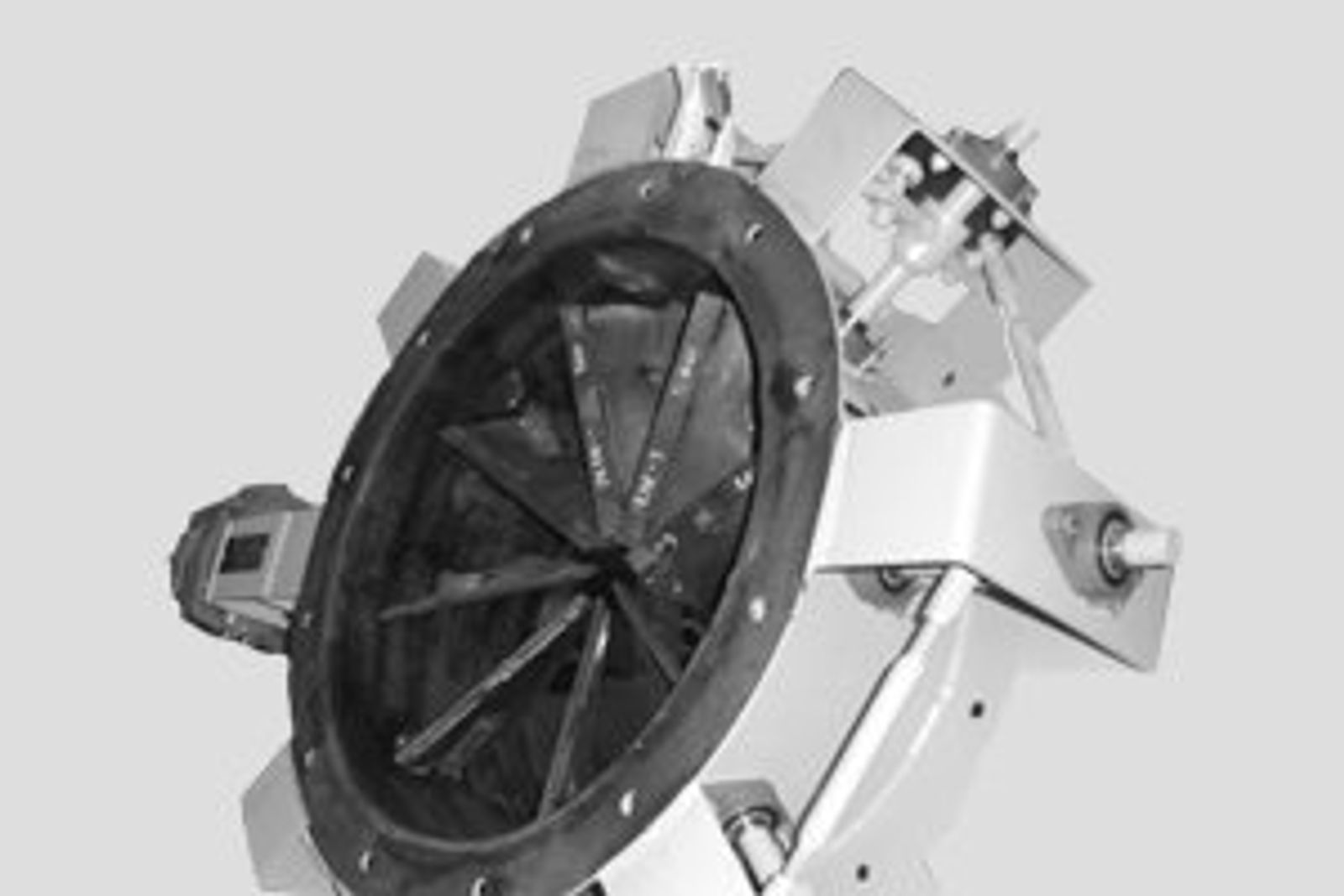

Dampers are Louvre, Guillotine, Butterfly, Poppet, or Diverter dampers.
Relentless commitment to the consistent
manufacturing of quality products.
Total Quality, Total Service, and Quality through Engineering is our motto.
Dampers and Stacks
High Strength.
Cost-Effective.
Dampers
Dampers used for process gas control and Isolation. While valves used for high-pressure applications, Dampers are used for low pressure. Dampers can be designed for zero leaks using appropriate seals and seal air fans.
Applications

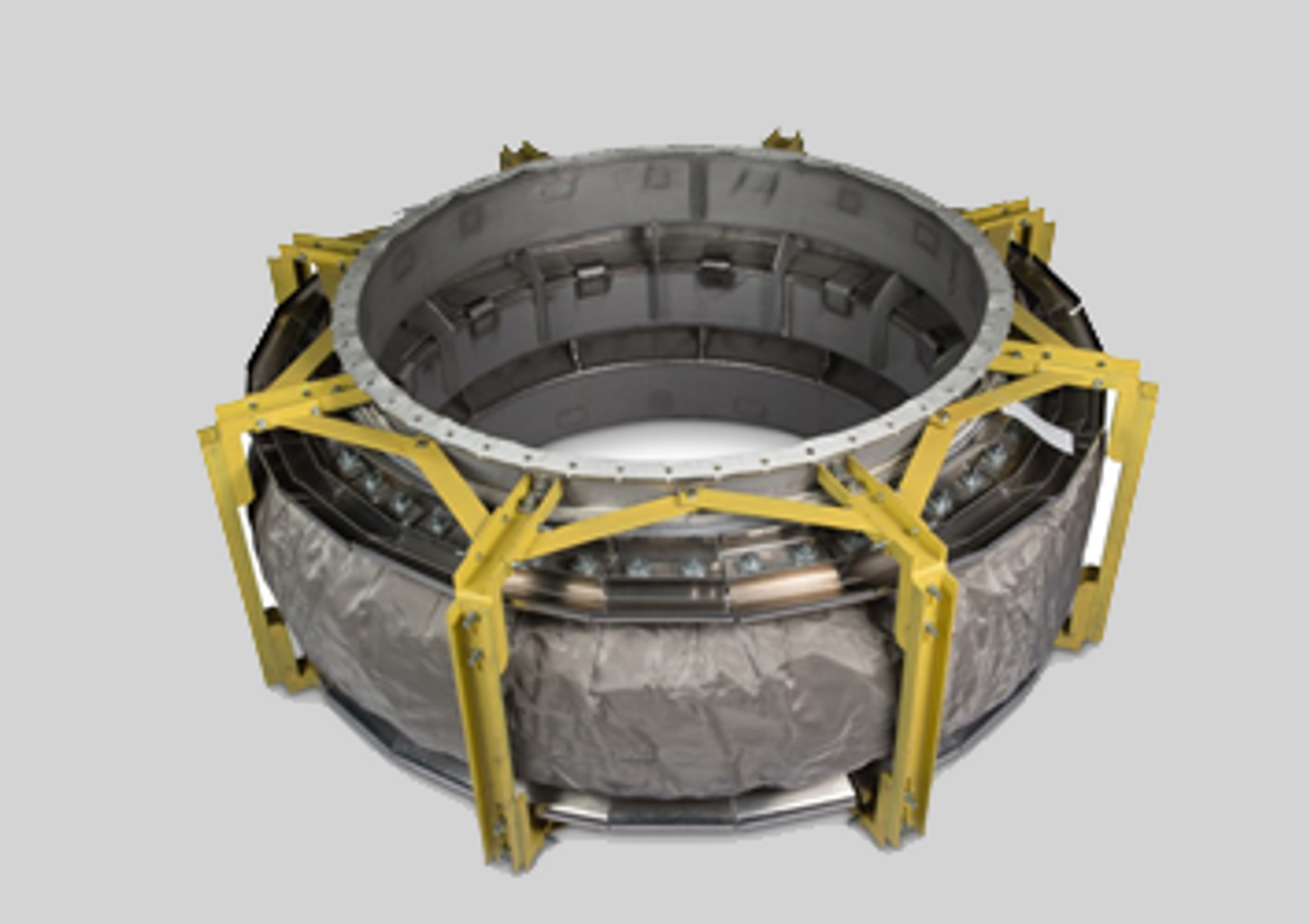

Gas Turbines & Heat Recovery
Desulphurization (Wet and Dry)
Regenerative Thermal Oxidizers (RTO)
Chimneys and Stack
Power Plants Gas, Coal, Diesel
Smelting Plants Zn, Cu Al
Applications
# Gas Turbines & Heat Recovery
# Desulphurization (Wet and Dry)
# Regenerative Thermal Oxidizers (RTO)
# Chimneys and Stack
# Power Plants Gas, Coal, Diesel
# Smelting Plants Zn, Cu Al

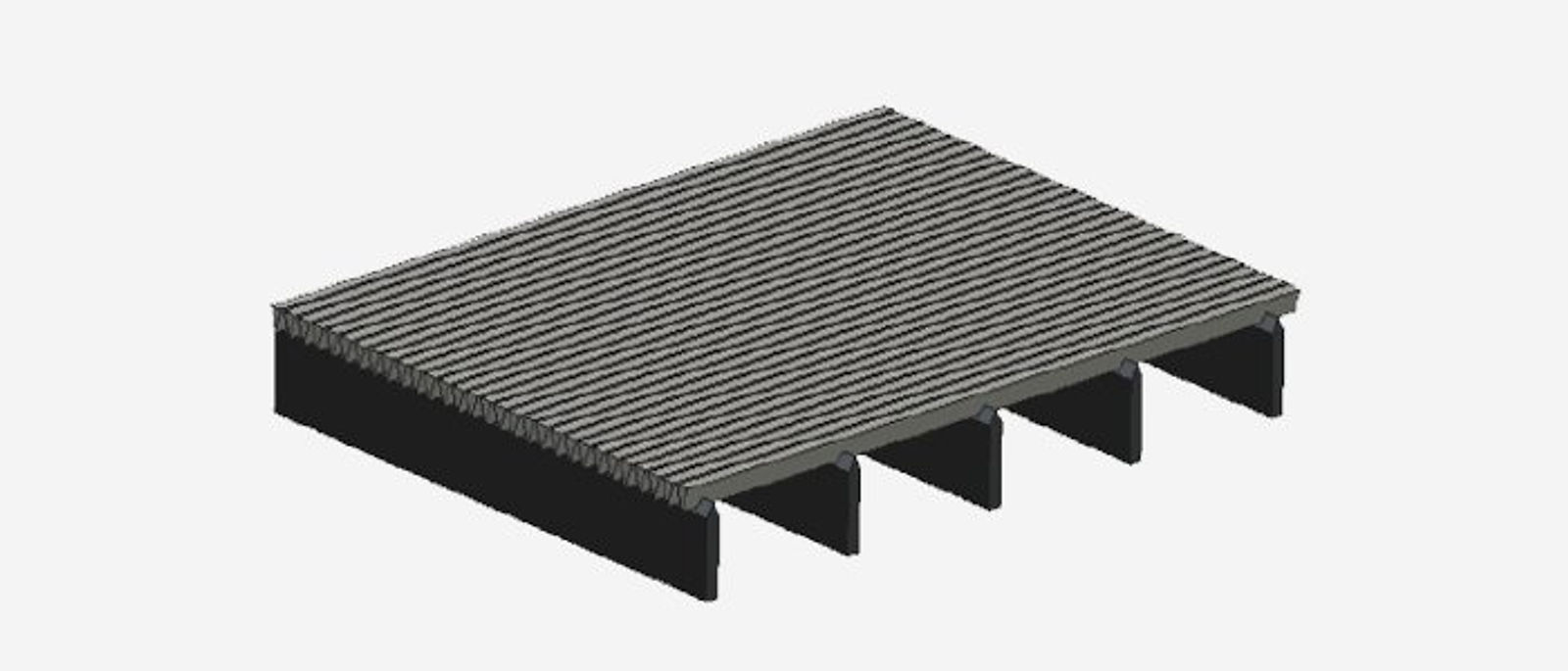

Wedge Wire Screen & Strainers & Filters

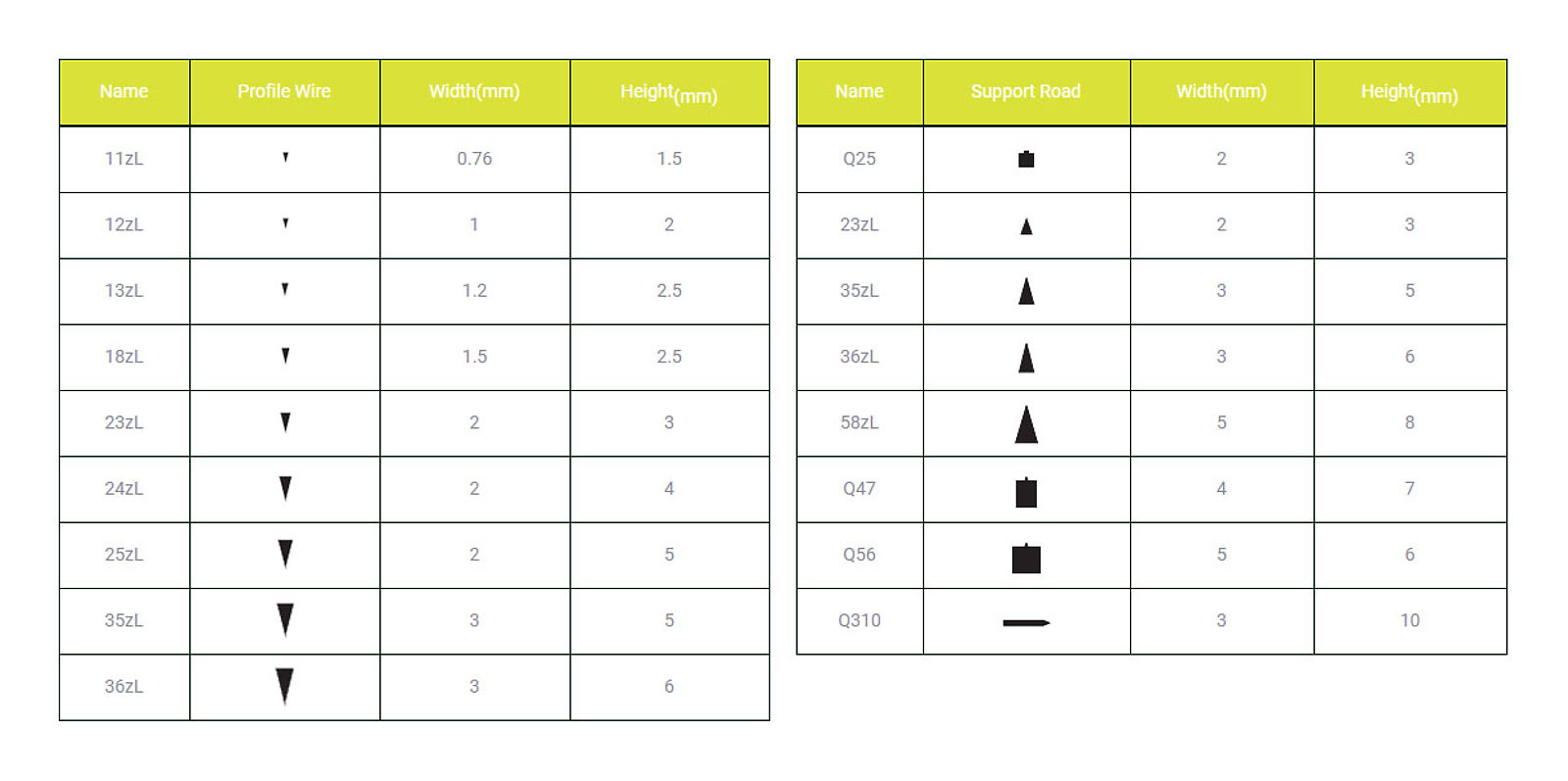

Wedge Wire is a welded steel structure, mainly used for filtration, separation, and retention media. It consists of profile wires, usually
V-shaped, that is resistance welded onto support rods. The distance between the profile wires controlled very accurately, as it forms the slot through which the filtrate flows. (as shown).
Metal Expansion Joints
# Gas Turbines & Heat Recovery
# Desulphurization (Wet and Dry)
# Regenerative Thermal Oxidizers (RTO)
# Chimneys and Stack
# Power Plants Gas, Coal, Diesel
# Smelting Plants Zn, Cu Al
The Common Material Use For Bellows Element
Duplex Stainless Steel
Duplex- SAF 2205
Super Duplex- SAF 2507
Nickel-Cobalt Alloy
Nickel: Nickel 200/201
Inconel: 600.601.625/625LCF
Incolloy: 800, 800H/HT, 825
Hastelloy: C22, C276
Monel: 400
Stainless Steel
Austenitic: SS 304/304L/304H, 316/316L, 317/317L, 321, 904L
Ferritic: 253MA, 309, 310/310S, 3CR12, 5CR12
254 SMO
PTFE Lined Metal Expansion Joint
Titanium
Grade2/2H
Manufacturing Process
Manufacturing Process

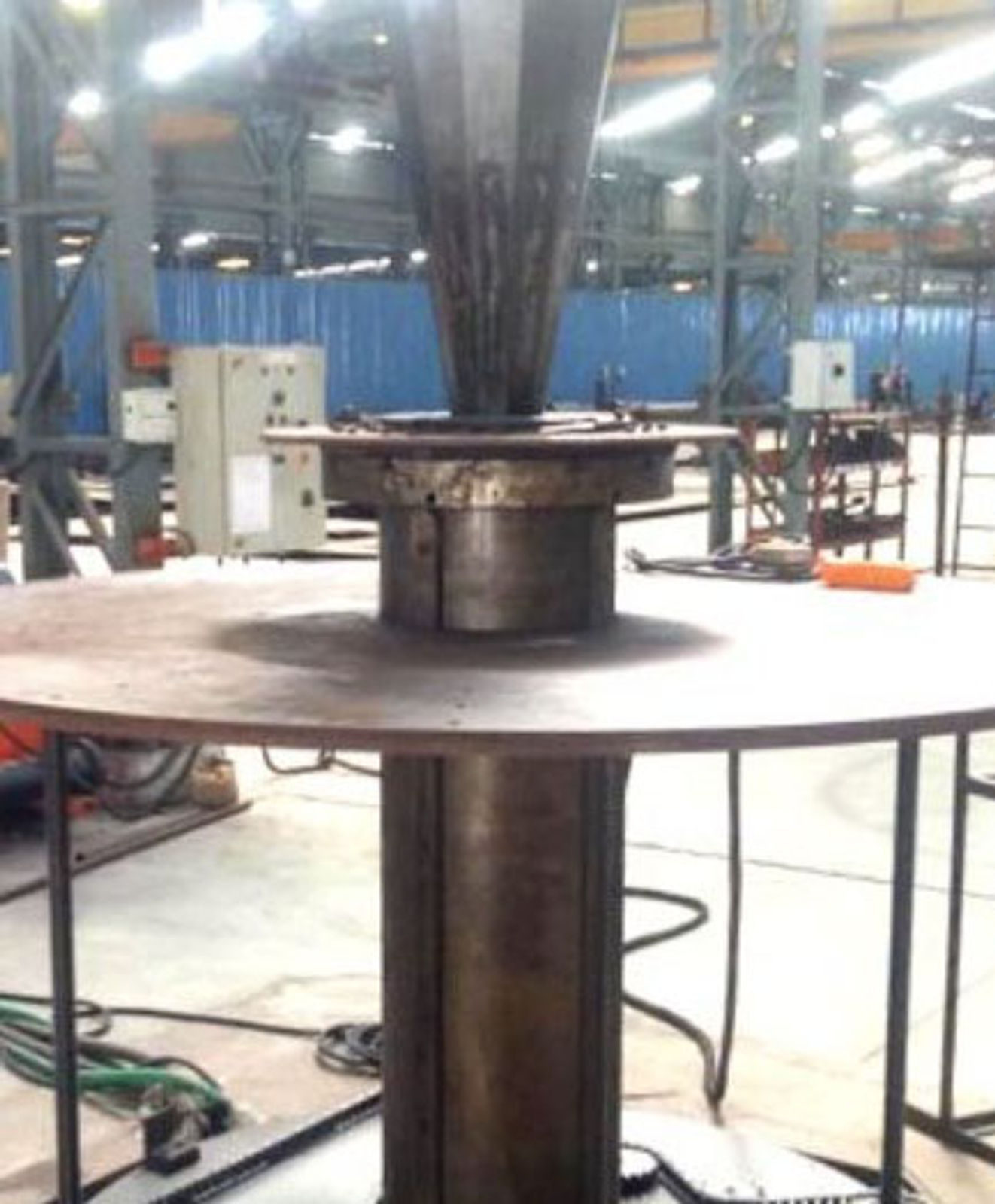

#Hydroforming
#Punchforming
Hydroforming capacity from 50mm to 900 mm and thickness from 0.3 mm to 2.5 mm thickness single ply and 4 mm multiply.
Punch forming capacity from 125 mm to 6000 mm and thickness from 0.3 mm to 5 mm single ply and maximum 8 mm multiply.
Application Engineering
The type of Expansion Joint chosen is dependent on the philosophy of the manufacturer. Pipe stress problem is resolved by using bellows either absorbing movement in axial, lateral, angular, or a combination of these movements and the existing conditions at the site. If it is a new application, our preference would be only to use restrained type against unrestrained type. We can also employ stress analysis to assist in solving customers’ piping problems.
Design Code:
EJMA 10
ASME B31.1
ASME B31.3
ASME Section VIII div 1 Appendix 26
NONMETAL EXPANSION JOINTS-
Non-Metal Expansion Joints (Fabric) are designed to provide stress relief by absorbing movements caused by thermal changes, vibration & minor misalignment. Fabric EJ used in applications where the pressure is less than 30 kpag (0.3 bar) and up to 1500 deg C. to
absorb either movement and/or vibration in a duct.
Fabric Expansion Joints
The selection of the fabric and the design is dependent on individual applications. We can design and supply both materials with frames or without, spliced or unspliced for site installation.
Fabric Expansion Joints construction
Composite type- Multilayer
Elastomeric type – Single layer fabric.
The design of the fabric can be either Belt type or Flange type.
Rubber Expansion Joints
Rubber Expansion Joints used in an application where the temperature is below 200 deg C and moderate pressure. Ideal for absorbing vibration and noise in addition to movement in all directions.
There are two types of Rubber Expansion Joints
Spherical type – single or multi spheres.
Arch type- single or multi-arch
Like Metal Expansion Joint, Rubber Expansion joints are designed as
Restrained type hinged, tied gimbal, pressure-balanced designs and
Unrestrained types.
Rubber Joint Polymer
Natural Rubber, Neoprene, EPDM, Butyl, Nitrile, Viton
PTFE Expansion Joint
PTFE Expansion Joints used in applications where the medium is corrosive and the temperature is below 260 deg C to absorb movements in all directions. PTFE lined metal housing for higher pressure Up to 500 mm nb PTFE tube thickness of 2 mm 500 nb and higher diameter PTFE tube thickness 2 mm or higher.
Designed and Mfg. with multiple convolutions with Vanstone ends.
Designed and Mfg. with high metal housing thickness in single or multilayers for higher pressure PTFE Expansion Joints designed with
Reinforced design for high pressure.
With Vacuum band for full vacuum
Multiple convolutions for higher movements
Design code for Non-Metal Expansion Joints
Fluid Sealing Association Handbook (FSA)
Tower Internals
We can supply spares of OEM Tower Internals.
High-performance and high-quality tower internals like scallops, support grids, outlet collector, center pipe/ inner screen, and more for industrial use.
Applications
#Chemical Industries= Synthesis of Ammonia, Urea, and Methanol
#Petrochemical Industries- Aromatic Separation BTX Benzene,
Toluene, and Xylene
# Refineries FCCU Catalytic Refinery Units- Isomerization
# Hydrotreating Units
# Hydrocracking Units
# Alkylation Units
Industries
# Sewage Treatment Plants
# Water Treatment Plants
# Poultry/Fish/Fruit/Vegetable
# Chemical
# Oil and Gas
# Textile
# Pharmaceutical
# Paper and Pulp
# Food Manufacturers
# Starch Manufacturers
